라우팅 설정 및 AH-ESP 터널모드 구성

2024. 9. 3. 15:39
728x90

GNS3 (라우팅 환경)





 [ 01. 라우터 설정 ]

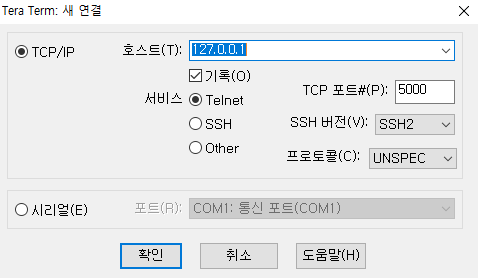

- Tera Term 프로그램 > 메뉴 > 새로만들기
- 호스트 : 127.0.0.1 (localhost)
- 서비스 : Telnet
- TCP 포트 : 5000-5003 (R1-R4)

R1 라우터 초기 설정





============================================================

 [ 02. 라우팅 테이블 등록 및 활성화 작업 (초기 세팅) ]

# config 모드 진입
configure terminal

# loopback 0번 인터페이스로 진입해서 해당 ip 등록
# R1: 172.16.1.1 / R2 : 172.16.2.1 / ...
interface loopback 0
ip address 172.16.1.1 255.255.255.0

# 라우터 활성화 상태 유지 및 config 모드 종료
no shutdown
end

# 라우팅 설정 확인
# 172.16.1.0 대역으로 들어오면 loopback 0 으로 보내겠다

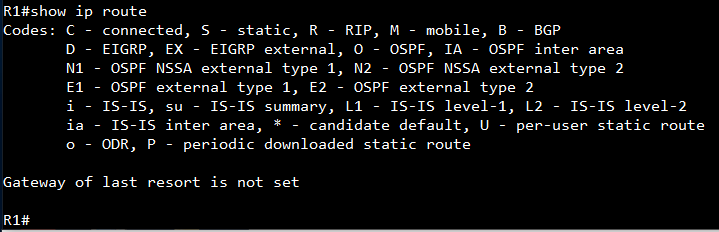

show ip route
>> 172.16.1.0 is directly connected, Loopback0

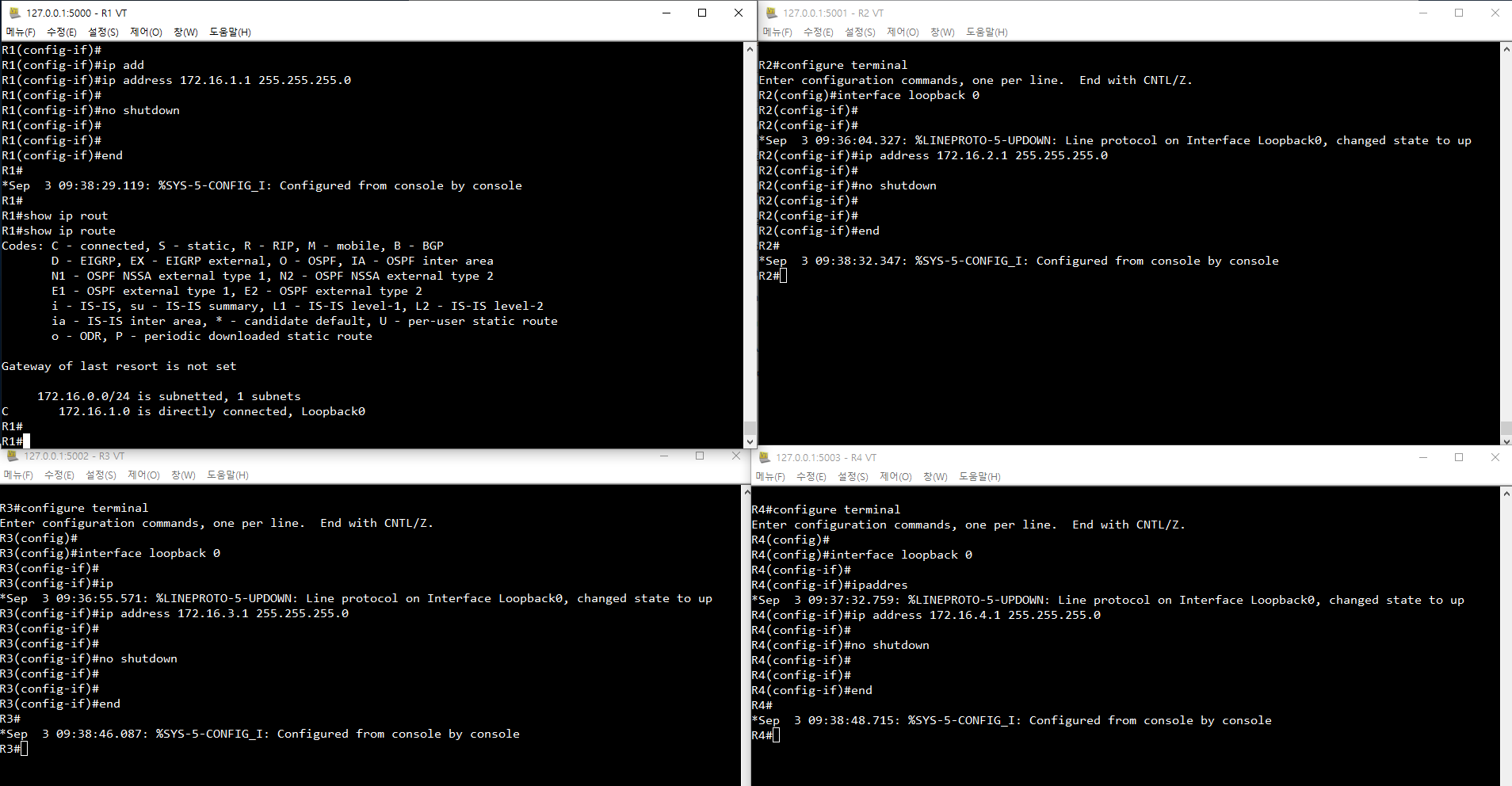

라우터 4개 모두 1차 구성 완료된 화면





============================================================

 [ 03. 라우터 구성 작업 ]

=================== <R1> ===================
configure terminal
interface serial 1/1
ip address 192.168.12.1 255.255.255.0
no shutdown

=================== <R2> ===================
configure terminal
interface serial 1/2
ip address 192.168.12.2 255.255.255.0
no shutdown
exit

interface serial 1/1
ip address 192.168.23.1 255.255.255.0
no shutdown

=================== <R3> ===================
configure terminal
interface serial 1/2
ip address 192.168.23.2 255.255.255.0
no shutdown
exit

interface serial 1/1
ip address 192.168.34.1 255.255.255.0
no shutdown

=================== <R4> ===================
configure terminal
interface serial 1/2
ip address 192.168.34.2 255.255.255.0
no shutdown





============================================================

 [ 04. 라우팅테이블 확인 ]

**R1,4
# end
# show ip route --> R1,4 : 맨 끝 라우터니까 C(connected) 가 2줄 뜸


**R2,3
# end

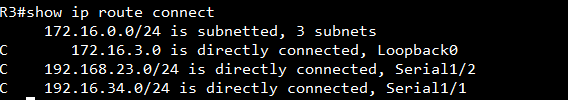

# show ip route --> R2,3 : 중간에 있는 라우터니까 C 가 3줄 뜸





============================================================

 [ 05. 라우팅 패킷 덤프 (캡처) ]

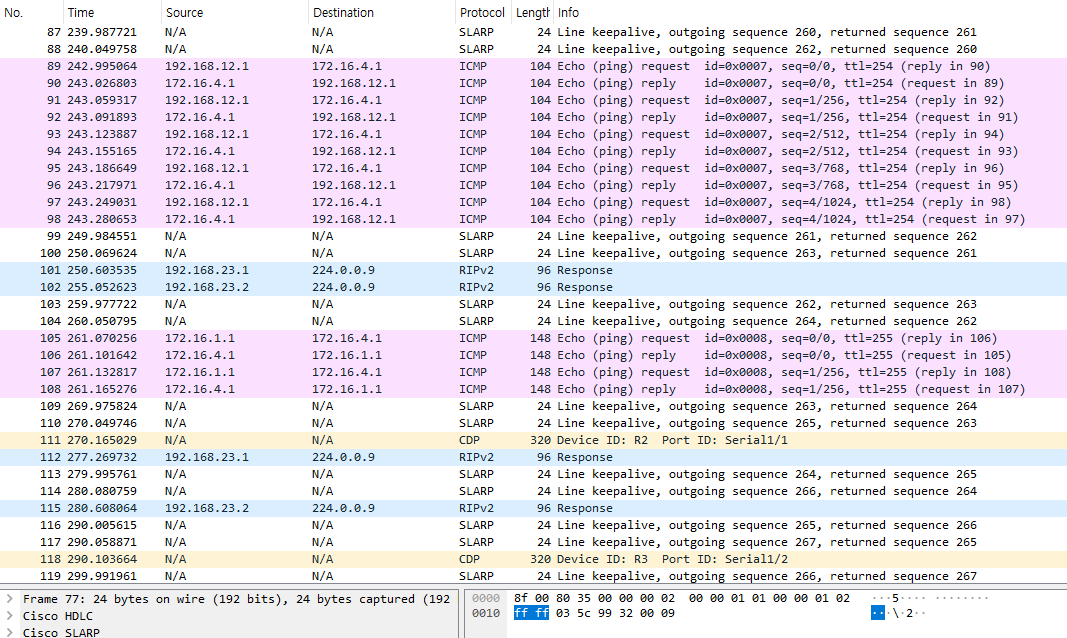

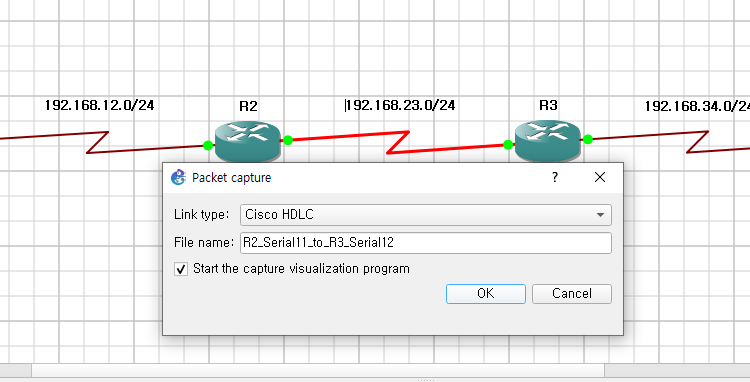

R2 <-> R3 라우팅 과정에서 패킷 덤프 하게됨 (wireshark 프로그램이랑 연동됨)

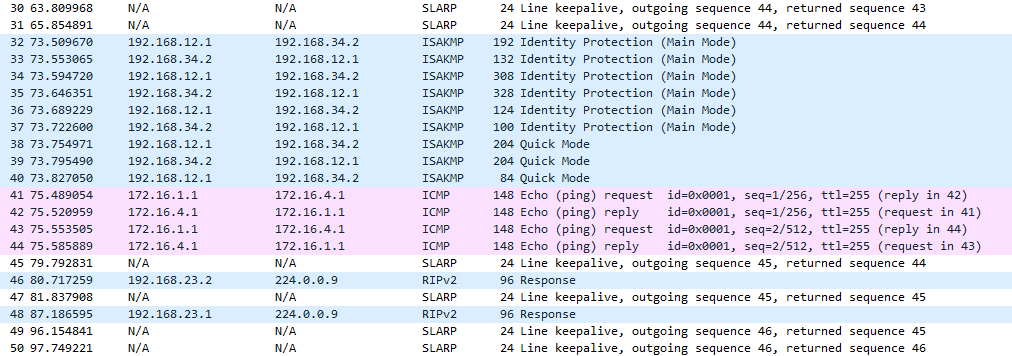

ping 날렸을때 패킷 덤프 뜬거 (실패한거랑 성공한거)





============================================================

 [ 06. 라우팅테이블 정보 전달 ]

*rip(routing information protocol) : 내가 알고있는 정보를 상대방에게 넘기겠다
- 각 라우터가 알고있는 정보 : C가 뜨던 줄
- C : connect
- R : RIP (Routing Information Protocol)

R1# configure terminal
R1(config)# router rip
R1(config-router)# version 2
R1(config-router)# no auto-summary


# 각 라우터 별 정보 전달
R1(config-router)# network 172.16.1.0
R1(config-router)# network 192.168.12.0
R1(config-router)# end

R2(config-router)# network 172.16.2.0
R2(config-router)# network 192.168.12.0
R2(config-router)# network 192.168.23.0
R2(config-router)# end

R3(config-router)# network 172.16.3.0
R3(config-router)# network 192.168.23.0
R3(config-router)# network 192.168.34.0
R3(config-router)# end

R4(config-router)# network 172.16.4.0
R4(config-router)# network 192.168.34.0
R4(config-router)# end

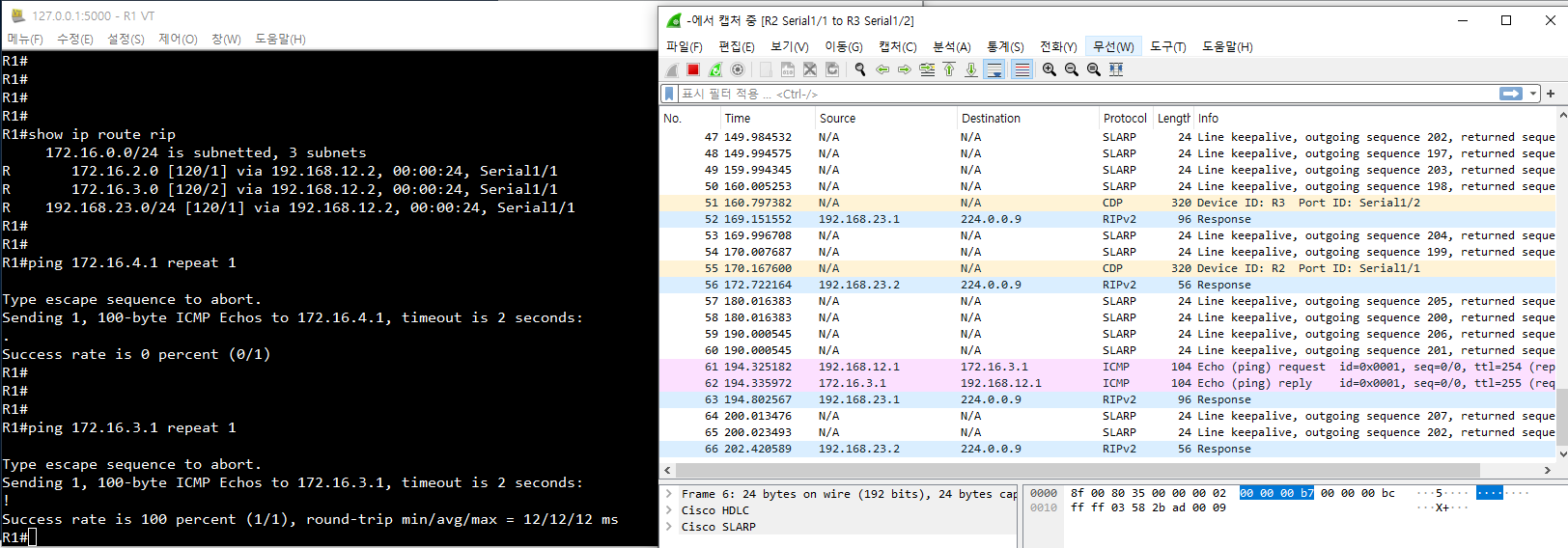

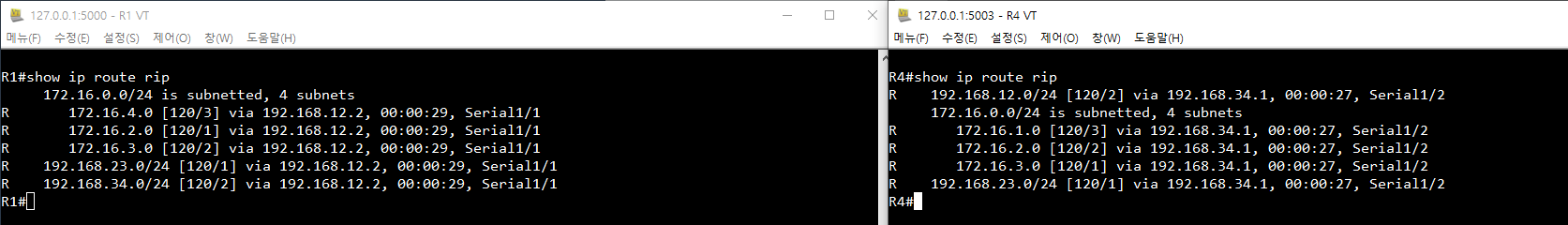

show ip route rip

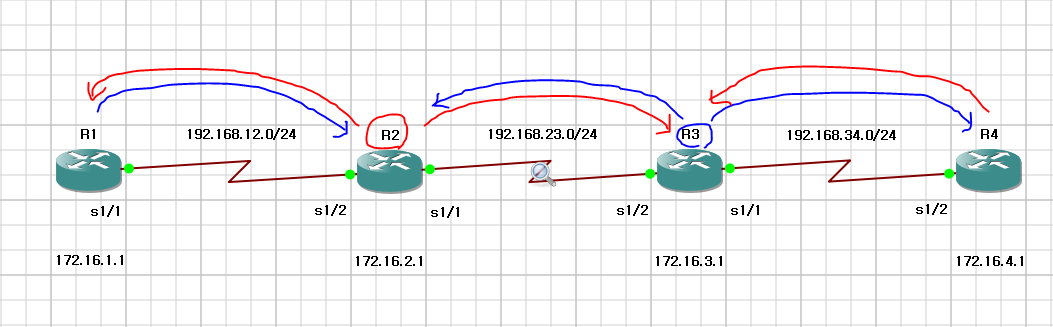

  • R1 : R2 한테 자신의 정보를 전달
  • R2 : R1, R3 한테 자신의 정보를 전달
  • R3 : R2, R4 한테 자신의 정보를 전달
  • R4 : R3 한테 자신의 정보를 전달



show ip interface brief
  • 물리층, 데이터 링크층의 'up', 'down' 상태 및 IP 주소 정보 확인



wr
  • 지금까지의 설정 저장





============================================================

 [ 07. R1 - R4 IPSec VPN 설정 4가지 ]

  • R2, R3는 설정할 필요 없음 (R1, R4만 필요)

1) AH - 축약 모드

=================== <R1> ===================
# config 모드 진입
configure terminal

crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp peer address 192.168.34.2
set aggressive-mode password 1234
set aggressive-mode client-endpoint ipv4-address 172.16.4.1
ip access-list extended R1R4
permit ip 172.16.1.0 0.0.0.255 172.16.4.0 0.0.0.255
exit
crypto ipsec transform-set KITRI ah-md5-hmac
exit
crypto map VPN 10 ipsec-isakmp
match address R1R4
set peer 192.168.34.2
set transform-set KITRI
exit
interface serial 1/1
crypto map VPN
end

=================== <R4> ===================
# config 모드 진입
configure terminal

crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp peer address 192.168.12.1
set aggressive-mode password 1234
set aggressive-mode client-endpoint ipv4-address 172.16.1.1
ip access-list extended R4R1
permit ip 172.16.4.0 0.0.0.255 172.16.1.0 0.0.0.255
exit
crypto ipsec transform-set KITRI ah-md5-hmac
exit
crypto map VPN 10 ipsec-isakmp
match address R4R1
set peer 192.168.12.1
set transform-set KITRI
exit
interface serial 1/2
crypto map VPN
end


=================== <추가 확인> ===================

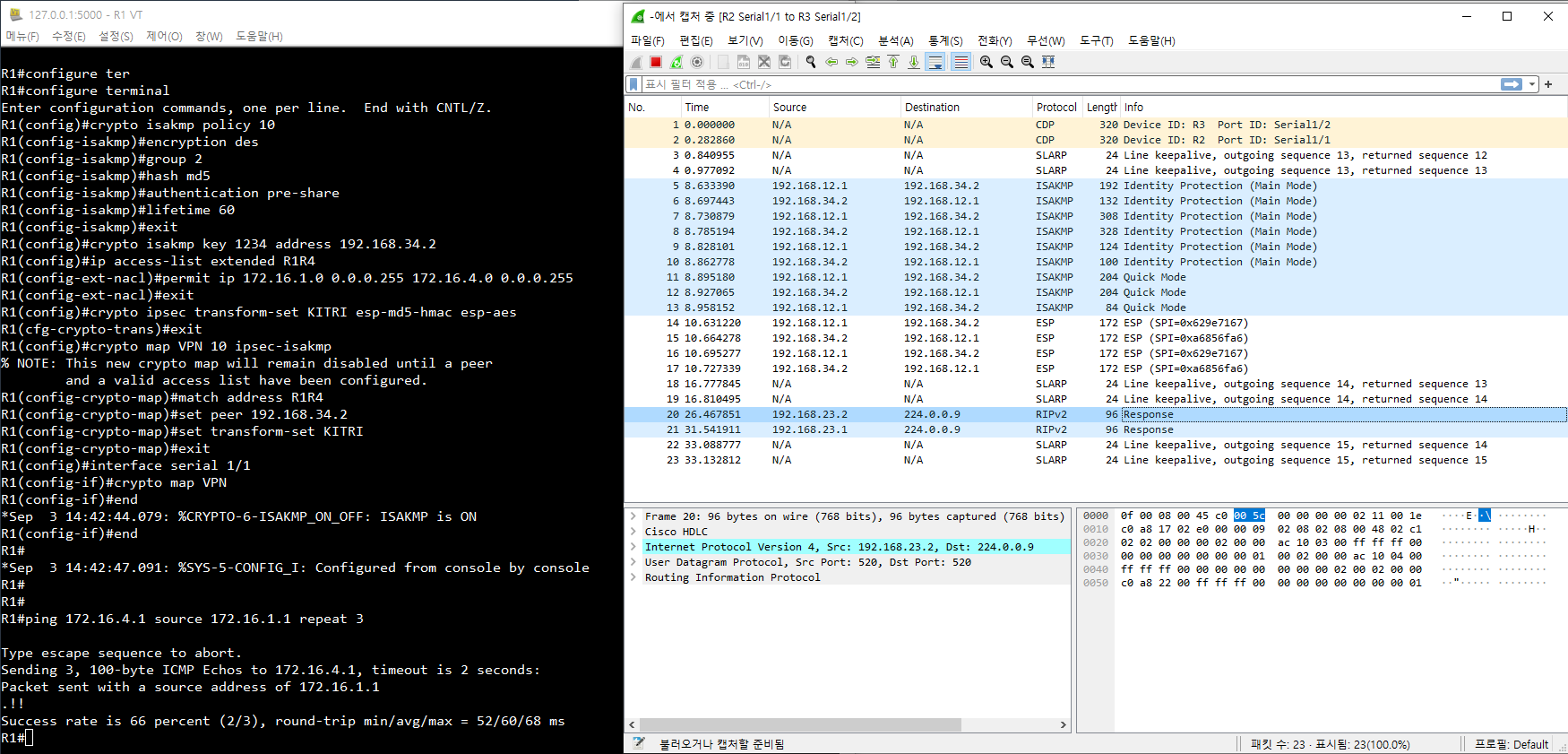

[동작 확인]

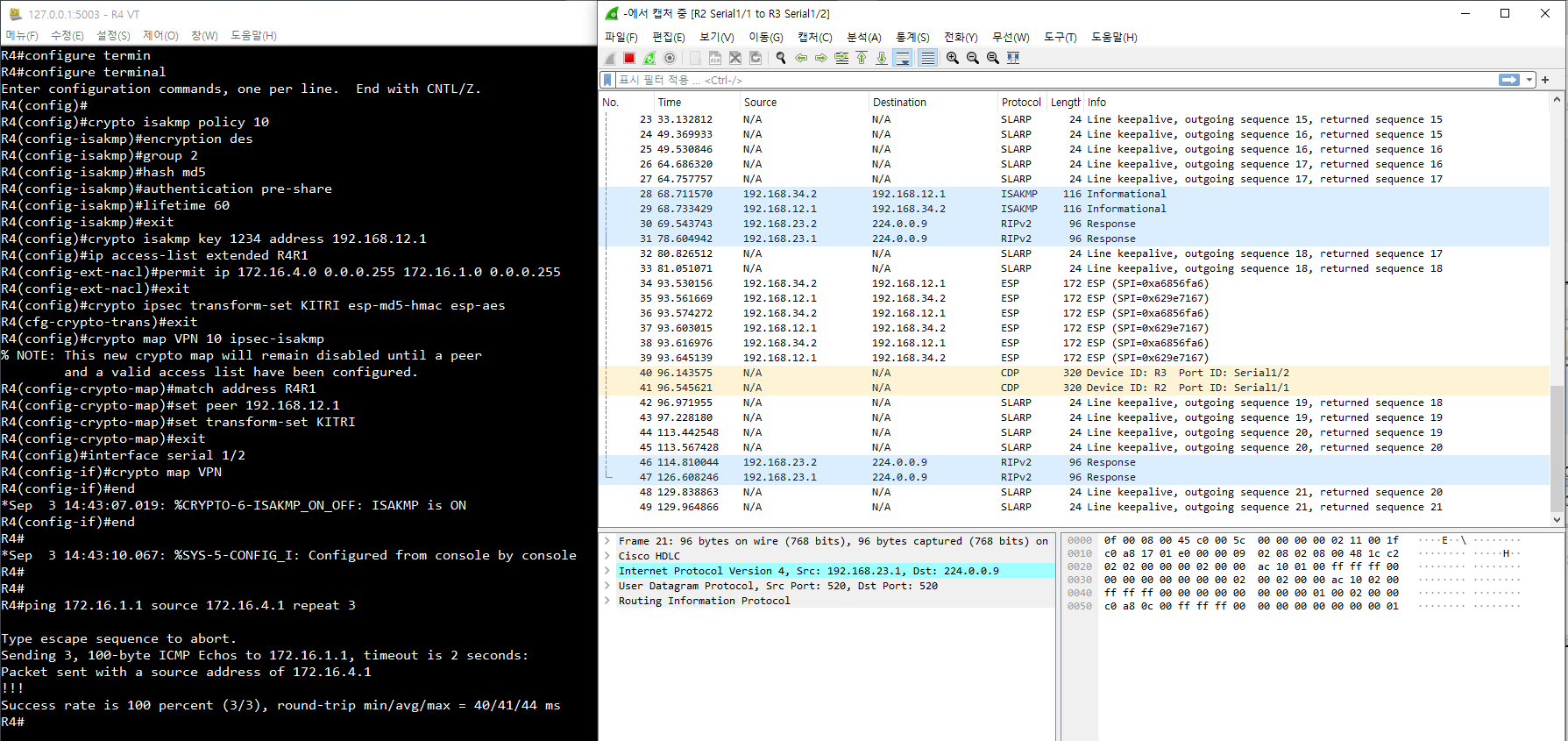

ping 172.16.1.1 source 172.16.4.1 repeat 3
[피어 상태 확인]
show crypto isakmp peers
[SA 상태 확인]
show crypto isakmp sa
[연결 상태 확인]
show crypto engine connections active [연결 재시작]
clear crypto session remote 192.168.12.1

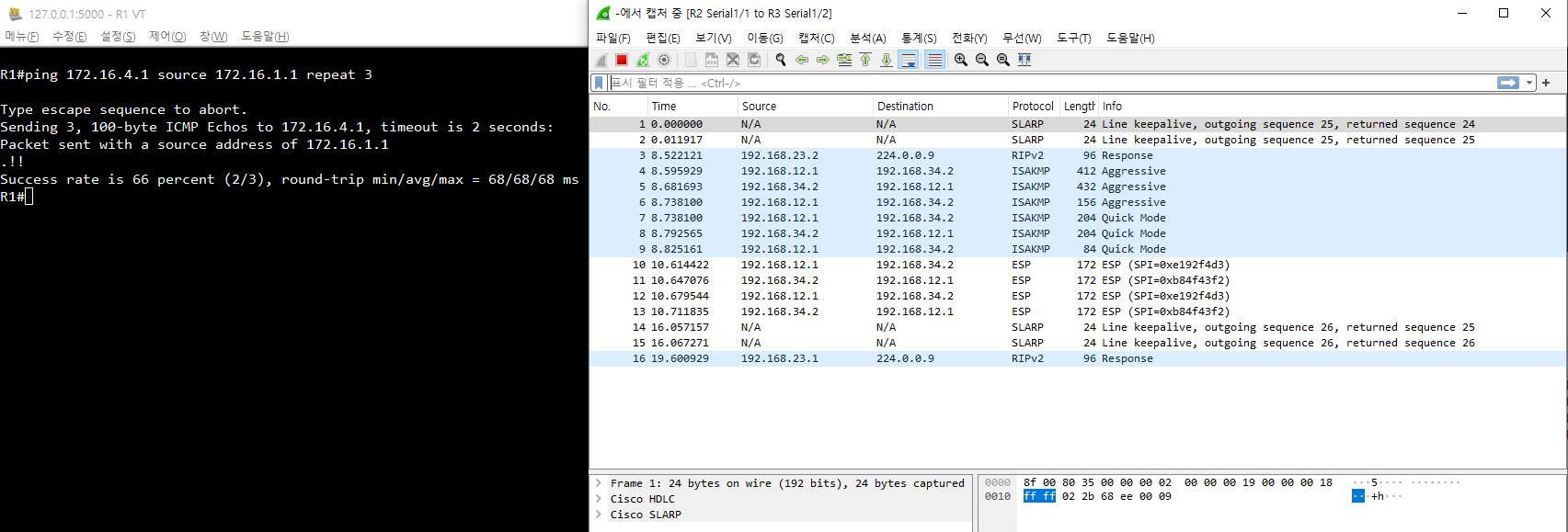

  • ping(패킷) 나가는게 적나라하게 보임











2) AH - Main 모드

초기 라우팅만 설정 완료된 상태 (VPN 설정 전)

=================== <R1> ===================
# config 모드 진입
crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp key 1234 address 192.168.34.2
ip access-list extended R1R4
permit ip 172.16.1.0 0.0.0.255 172.16.4.0 0.0.0.255
exit
crypto ipsec transform-set KITRI ah-md5-hmac
exit
crypto map VPN 10 ipsec-isakmp
match address R1R4
set peer 192.168.34.2
set transform-set KITRI
exit
interface serial 1/1
crypto map VPN
end

=================== <R4> ===================
# config 모드 진입
crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp key 1234 address 192.168.12.1
ip access-list extended R4R1
permit ip 172.16.4.0 0.0.0.255 172.16.1.0 0.0.0.255
exit
crypto ipsec transform-set KITRI ah-md5-hmac
exit
crypto map VPN 10 ipsec-isakmp
match address R4R1
set peer 192.168.12.1
set transform-set KITRI
exit
interface serial 1/2
crypto map VPN
end

=================== <추가 확인> ===================
[동작 확인]
ping 172.16.1.1 source 172.16.4.1 repeat 3
[피어 상태 확인]
show crypto isakmp peers
[SA 상태 확인]
show crypto isakmp sa
[연결 상태 확인]
show crypto engine connections active [연결 재시작]
clear crypto session remote 192.168.12.1



  • ping (패킷) 나가는게 숨겨짐
  • Main Mode > Quick Mode

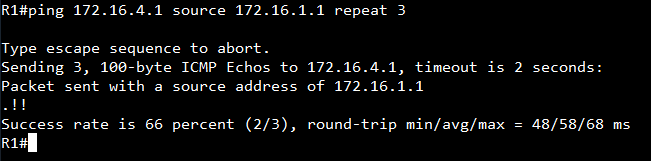

Ping 날렸을 때 " .!! " 의 . 은 터널모드 동작한다는 의미





3) ESP - 축약 모드

=================== <R1> ===================
# config 모드 진입
crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp peer address 192.168.34.2
set aggressive-mode password 1234
set aggressive-mode client-endpoint ipv4-address 172.16.4.1
ip access-list extended R1R4
permit ip 172.16.1.0 0.0.0.255 172.16.4.0 0.0.0.255
exit
crypto ipsec transform-set KITRI esp-md5-hmac esp-aes
exit
crypto map VPN 10 ipsec-isakmp
match address R1R4
set peer 192.168.34.2
set transform-set KITRI
exit
interface serial 1/1
crypto map VPN
end


=================== <R4> ===================
# config 모드 진입
crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp peer address 192.168.12.1
set aggressive-mode password 1234
set aggressive-mode client-endpoint ipv4-address 172.16.1.1
ip access-list extended R4R1
permit ip 172.16.4.0 0.0.0.255 172.16.1.0 0.0.0.255
exit
crypto ipsec transform-set KITRI esp-md5-hmac esp-aes
exit
crypto map VPN 10 ipsec-isakmp
match address R4R1
set peer 192.168.12.1
set transform-set KITRI
exit
interface serial 1/2
crypto map VPN
end


=================== <추가 확인> ===================
[동작 확인]
ping 172.16.1.1 source 172.16.4.1 repeat 3
[피어 상태 확인]
show crypto isakmp peers
[SA 상태 확인]
show crypto isakmp sa
[연결 상태 확인]
show crypto engine connections active [연결 재시작]
clear crypto session remote 192.168.12.1







4) ESP - Main 모드

=================== <R1> ===================
# config 모드 진입
crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp key 1234 address 192.168.34.2
ip access-list extended R1R4
permit ip 172.16.1.0 0.0.0.255 172.16.4.0 0.0.0.255
exit
crypto ipsec transform-set KITRI esp-md5-hmac esp-aes
exit
crypto map VPN 10 ipsec-isakmp
match address R1R4
set peer 192.168.34.2
set transform-set KITRI
exit
interface serial 1/1
crypto map VPN
end

=================== <R4> ===================
# config 모드 진입
crypto isakmp policy 10
encryption des
group 2
hash md5
authentication pre-share
lifetime 60
exit
crypto isakmp key 1234 address 192.168.12.1
ip access-list extended R4R1
permit ip 172.16.4.0 0.0.0.255 172.16.1.0 0.0.0.255
exit
crypto ipsec transform-set KITRI esp-md5-hmac esp-aes
exit
crypto map VPN 10 ipsec-isakmp
match address R4R1
set peer 192.168.12.1
set transform-set KITRI
exit
interface serial 1/2
crypto map VPN
end

=================== <추가 확인> ===================
[동작 확인]
ping 172.16.1.1 source 172.16.4.1 repeat 3
[피어 상태 확인]
show crypto isakmp peers
[SA 상태 확인]
show crypto isakmp sa
[연결 상태 확인]
show crypto engine connections active [연결 재시작]
clear crypto session remote 192.168.12.1



R1 --> R4
R4 --> R1

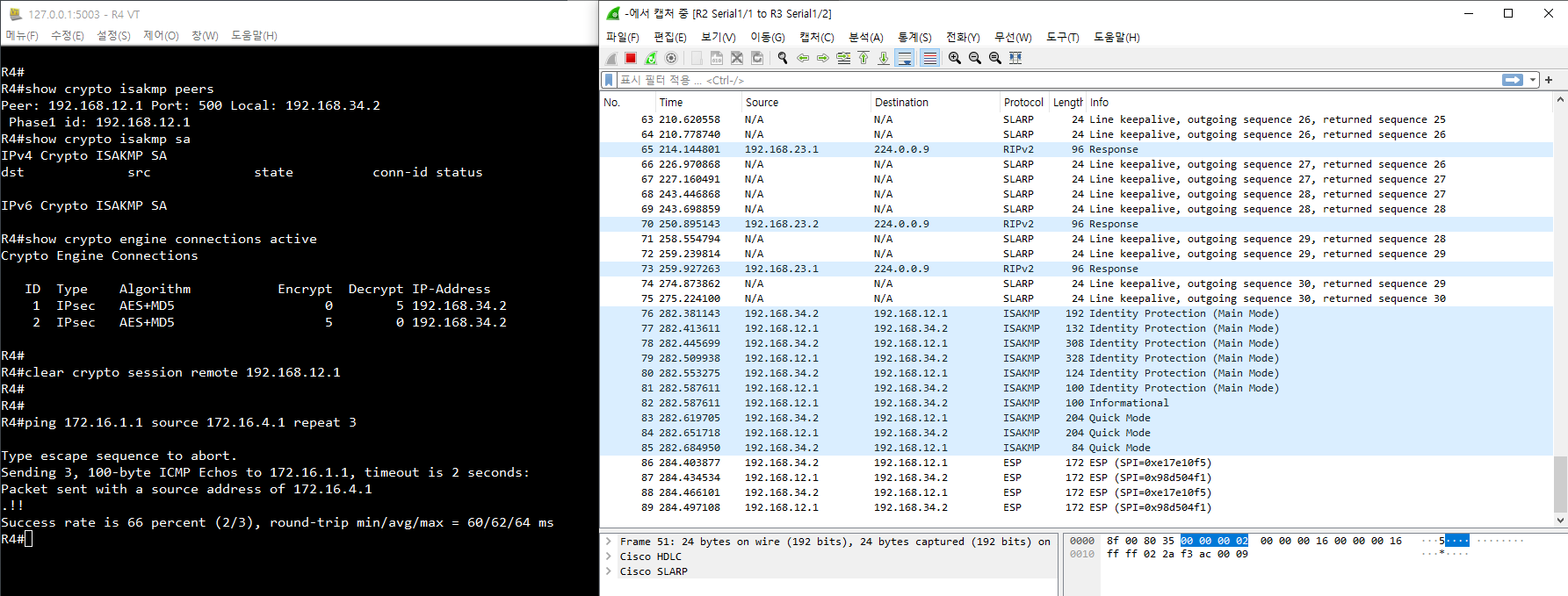

기존 터널 생성된걸 clear 하고나서 터널 재생성해야 Main/Quick Mode 부분이 생김





============================================================

 [ ESP 터널모드 - 부가 설명 ]

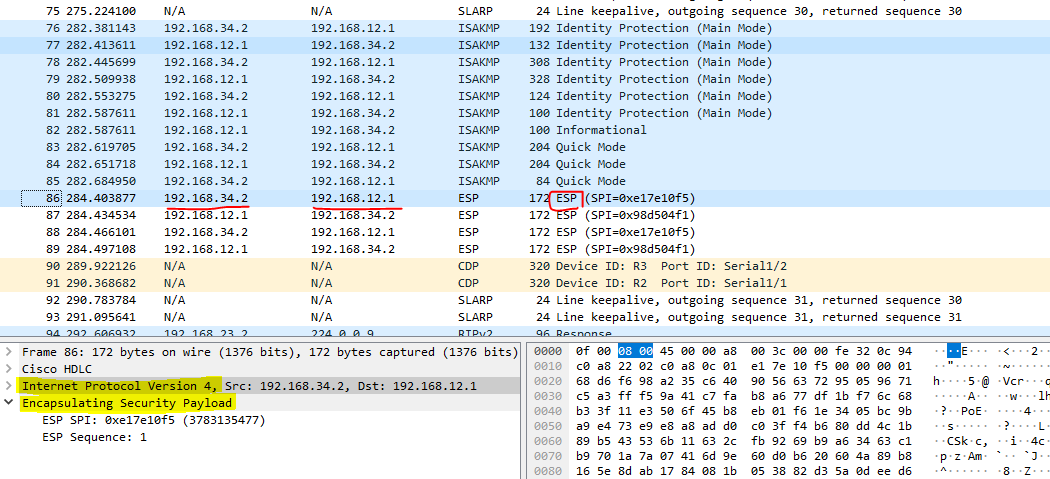

  • 패킷 덤프 뜬 내용 보면 터널모드로 진입(Main Mode) 하면서 라우팅 처리된 New Header IP 로 보여짐
  •  Internet Protocol Version 4 (IPv4) : New IP Header
    • New Header (라우팅 되도록 부여된 헤더 (라우터 기기 IP) - sniffing 되어도 괜찮음) : 192.168.12.1 / 192.168.34.2
  • Encapsulating Security Payload : Original IP Header 값을 담고있음 (값 자체는 암호화 + 캡슐화되어서 볼 수 없음)
    • ESP (패킷 전송 부분) 클릭하면 "Encapsulating Security Payload" 밑으로 Sequence 번호, SPI 번호만 알 수 있고, Original Header IP 값은 암호화 + 캡슐화 되어서 ESP 안으로 더이상 진입 불가
    • Original Header (실제 헤더 - 숨김처리) : 172.16.1.1 / 172.16.4.1



  •

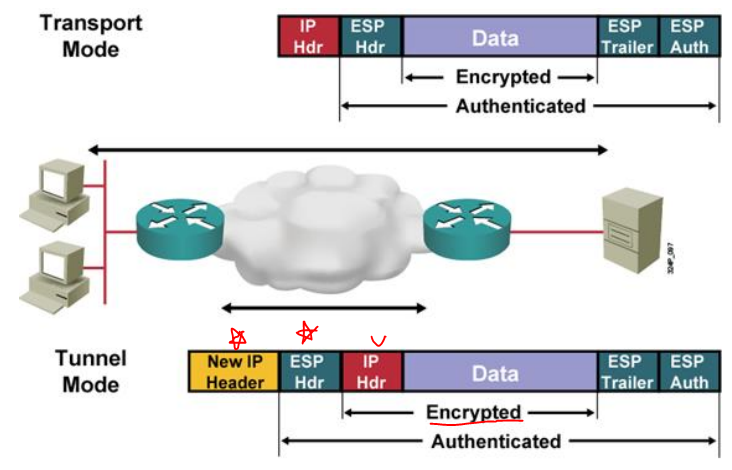

터널모드 [ New IP Header ESP Header(+Original IP Header) ]
